VIV 901

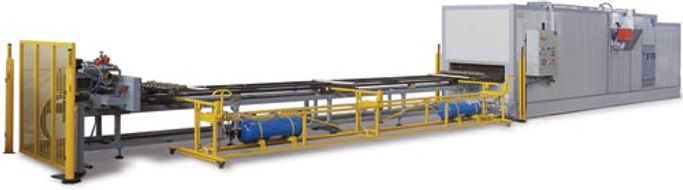

The wrapped profiles are placed on the mobile trolley situated in front of the oven, for ease of working at room temperature. Bags wrapped around the profiles are connected with a 9 aspiration head collector, placed on the frame, where the vacuum circuit allows the film to perfectly bond a precise decoration to the entire perimeter. The profiles automatically enter the oven where they remain for 3 to 6 minutes, until the decoration transfer is complete to a coating layer of 2.5 to 3 mils. A temperature probe monitors the profile for correct sublimation. Once the ideal temperature is reached, the trolley automatically comes out of the oven and collectors blow cool air over it, allowing the removal of the bags and a rapid drop in temperature. The profiles are then decorated and are ready for processing and packing. The plant can be supplied with a crane for the transfer of the trolleys. This device increases production output, facilitating the preparation of other frames, while each frame is in the oven. A double membrane frame for the decoration of flat, embossed sheets and 3-D parts can be supplied upon request. This powder coating machine is able to decorate parts with a maximum dimension of 21 x 4 ft.
