VIV 401

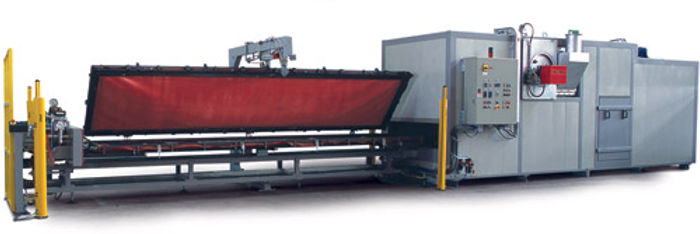

 The model VIV 401 is composed of a frame with membranes laid on a movable trolley in front of the oven. It is comprised of two hinged parts, each holding a membrane, that are closed manually once the wrapped profiles have been laid on the lower membrane. Once the upper lid is closed, a pump creates a vacuum between the two membranes. This process makes perfect adherence possible between the transfer film and the surface of both sides of the sheet, through constant pressure of the upper membrane. The loading operation is very easy, thanks to the unique shape of the platform and allows the work to occur at room temperature. Once the vacuum operation is finished, the frame is pushed manually into the oven where it stays for 7 to 10 minutes until the powder decoration transfer is complete to a coating layer of powder coating layer of 2.5 to 3 mils. A temperature probe controls the condition of the sublimation on metal process. The powder coating system has recently been equipped with a suction device, placed at the inside of the membrane frame. This allows decoration on all four surfaces of the profile, with excellent quality and remarkable reduction in production costs. The powder coating process is technologically advanced, as well as easy and safe to effect. This wood grain powder coating machine is able to decorate parts with a maximum dimension of 12 x 4 ft.
